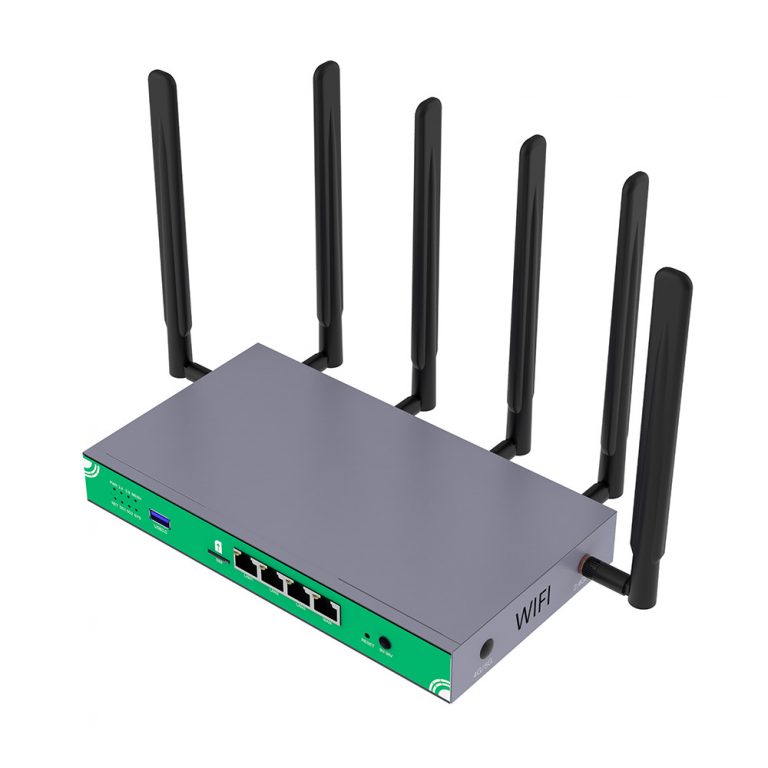

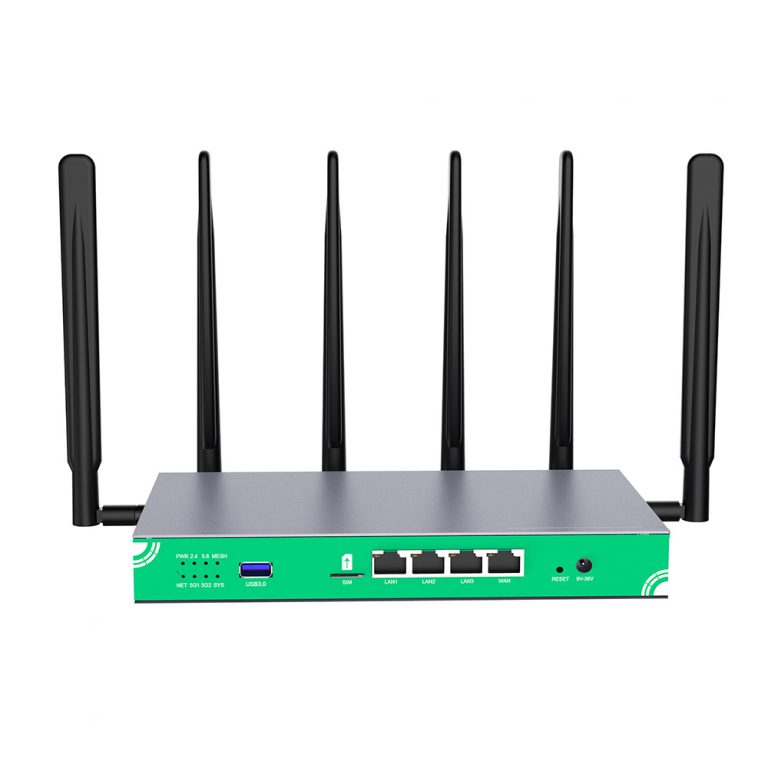

Industrial 1800Mbps WiFi6 5G/4G Router
Model: HC851
Using MT7621A MIPS dual-core CPU, main frequency is up to 880MHZ
Using 16MB Nor Flash+256MB DDR3 RAM, Max up to 32MB Flash+512MB DDR3 RAM
1 Gigabit WAN Port+3 Gigabit LAN Ports, support Auto MDI/MDIX, 1 USB 3.0 Port
Built-in one M.2/Mini-PCIE interface, support 5G mobile connection
1 SIM card (Nano SIM Card) interface and built-in eSIM (QFN-8 6mmx5mm) card interface, support SIM/USIM card
Support 9V-36V Power supply, 48V POE in as optional
External high-gain WIFI antenna, wireless signal 360 degrees without dead angle
This document describes the electrical characteristics, RF performance, dimensions and application environment of the HC851. Under the introduction of this document, end users or developers can quickly understand the hardware functions of HC851.
HC851 is a Wifi6 5G Router. It accesses the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, then shares the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
HC950 is a Gigabit 5G Gateway. It accesses the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, then shares the Internet network through 1000Mbps wired LAN.
Ports | 1*10/100/1000Mbps WAN Port(Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab |
3*10/100/1000Mbps LAN Port(Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab | |
SIM slot | 1* Nano SIM slot, 2*QFN-8(6mmx5mm) eSIM, Support SIM/USIM |
USB Port | 1*USB 3.0 port |
Power | 12V 2A DC5.0*2.1MM power adapter, support 9v-36v voltage, 48V POE in as optional |
Button | 1*Reset button |
Antennas | 2*Omnidirectional External 5dbi Wifi antennas |
4*Omnidirectional External 5dbi 5G/4G antennas |
Processor | MT7621A MIPS Dual Core CPU, 880MHZ main frequency |
WIFI chipset | MT7905D+MT7975D, IEEE 802.11n/g/b/a/ac/ax, max speed up to 1800Mbps |
RAM | DDR3 256MB (Max.512MB) |
Flash | Nor Flash 16MB (Max. 32MB) |
NAND Flash (Reserved Design)Max.1GB |
This product has built-in one M.2/MiniPCIE interface, which can be used to expand 5G/4G mobile communication functions. The built-in M.2/PCIE interface supports USB3.0 and USB 2.0 buses. 5G mobile communication supports NSA or SA.
Item | Testing Condition | Minimum | Rating | Maximum |
Working voltage(V) | T A = 25°C | 9 | 12 | 35 |
Absolute operating voltage(V) | T A = 25°C | 8 | 36 | |
Working Currency(A) | VIN=12V T A = 25°C | 0.3 | 0.9 | 1.5 |
Please use the standard power adapter to supply power to this product. If you do not use the standard power supply, please supply power to this product in strict accordance with the above power specifications and parameters, otherwise the product will be damaged. If the battery or vehicle power supply is used for power supply, please make anti-static and anti surge countermeasures.
Mode description | Index parameter | |
EVM standard(dBm) | 802.11B 11Mbps | ≤ -1 5 dB |
802.11G 54 Mbps | ≤ -25 dB | |
802.11N HT20@ MCS7 | ≤ -28 dB | |
802.11N HT40@ MCS7 | ≤ -28 dB | |
802.11AC VHT20@ MCS8 | ≤ -30 dB | |
802.11AC VHT40@ MCS9 | ≤ -32 dB | |
802.11AC VHT80@ MCS9 | ≤ -32 dB | |
802.11AX HE20@MCS 11 | ≤ -35 dB | |
802.11AX HE40@MCS 11 | ≤ -35 dB | |
802.11AX HE80@MCS 11 | ≤ -35dB |
Compatible with IEEE 802.11 b/g/n/ac/ax, supports 20MHz, 40MHz, modulation method 1024-QAM / OFDMA, adopts 2T2R MU-MIMO antenna technology, and the highest connection rate is up to 573.5Mbps. The following is an explanation of 2.4G WIFI’s power frequency, receiving sensitivity, and transmitting power.
Item | Instruction | Maximum Value | Rating | Minimum Value |
Working Frequency(MHz) | 2484 | 2412 | ||
Receiving sensitivity(dBm) | 802.11B 11Mbps | -86 | -87 | -88 |
802.11G 54 Mbps | -69 | -71 | -73 | |
802.11N HT20@ MCS7 | -67 | -69 | -71 | |
802.11N HT40@ MCS7 | -65 | -67 | -69 | |
802.11AC VHT20@ MCS8 | -63 | -65 | -67 | |
802.11AC VHT40@ MCS9 | -61 | -63 | -65 | |
802.11AX HE20@MCS11 | -62 | -64 | -66 | |
802.11AX HE40@MCS11 | -60 | -62 | -64 | |
Transmit power(dBm) | 802.11B 11Mbps | 22 | 21 | 20 |
802.11G 54 Mbps | 20 | 19 | 18 | |
802.11N HT20@ MCS7 | 19 | 18 | 17 | |
802.11N HT40@ MCS7 | 19 | 18 | 17 | |
802.11AC VHT20@ MCS8 | 18 | 17 | 16 | |
802.11AC VHT40@ MCS9 | 18 | 17 | 16 | |
802.11AX HE20@MCS11 | 17 | 16 | 15 | |
802.11AX HE40@MCS11 | 17 | 16 | 15 |
Compatible with IEEE 802.11 a/ac/ax, supports 20MHz, 40MHz, 80MHz, modulation method 1024-QAM / OFDMA, adopts 2T2R MU-MIMO antenna technology, and the highest connection rate is up to 1201Mbps. The following is an explanation of the power frequency, receiving sensitivity, and transmitting power of 5.8G WIFI.
Item | Instruction | Maximum Value | Rating | Minimum Value |
Working Frequency(MHz) | 5825 | 5180 | ||
Receiving sensitivity(dBm) | 802.11G 54 Mbps | -69 | -71 | -73 |
802.11N HT20@ MCS7 | -67 | -69 | -71 | |
802.11N HT40@ MCS7 | -65 | -67 | -69 | |
802.11AC VHT20@ MCS8 | -63 | -65 | -67 | |
802.11AC VHT40@ MCS9 | -61 | -63 | -65 | |
802.11AC VHT80@ MCS9 | -59 | -61 | -63 | |
802.11AX HE20@MCS 11 | -57 | -59 | -61 | |
802.11AX HE40@MCS 11 | -55 | -57 | -59 | |
802.11AX HE80@MCS 11 | -53 | -55 | -57 | |
Transmit power(dBm) | 802.11G 54 Mbps | 20 | 19 | 18 |
802.11N HT20@ MCS7 | 19 | 18 | 17 | |
802.11N HT40@ MCS7 | 18 | 17 | 16 | |
802.11AC VHT20@ MCS8 | 18 | 17 | 16 | |
802.11AC VHT40@ MCS9 | 17 | 16 | 15 | |
802.11AC VHT80@ MCS9 | 16 | 15 | 14 | |
802.11AX HE20@MCS 11 | 18 | 17 | 16 | |
802.11AX HE40@MCS 11 | 17 | 16 | 15 | |
802.11AX HE80@MCS 11 | 16 | 15 | 14 |
Color | Gray |
Packing List | HC851 1PCS |
12V 2A power adapter 1PCS | |
Cat 5 Patch cable 1PCS | |
Mounting Brackets 1SET |
Working temperature | -20℃ – 60℃ |
Storage temperature | -40℃ – 70℃ |
Working humidity | 10% – 90%RH, Non condensing |
Storage humidity | 5% – 90%RH,Non condensing |
Default IP | 192.168.1.1 |
Username/password | root/admin |
2.4G SSID | WIFI6-XXXXXX (x is the last 6 bits of MAC address), default no password |
5.8G SSID | WIFI6-5G-XXXXXX (x is the last 6 bits of MAC address), default no password |
The above is the general default configuration information of the product. Please refer to the product description for other detailed software functions.
